Automatic Pallet Wrapper & StrapperIn factories, warehouses and packaging workshops, pallet wrapping machines and pallet strapping machines are frequently used pallet packaging solutions for various industrial packaging applications. Particularly, in corrugated cardboard manufacturing plants, the use of pallet wrapper and pallet strapper can help cardboard manufacturers increase working efficiency while reducing the risk of packaging problems that often occur when the pallet is wrapped manually.
Taiyang offers a range of automatic pallet wrapping and strapping machines that can satisfy your corrugated board packaging needs. Please get in touch with our engineers if you want more details.

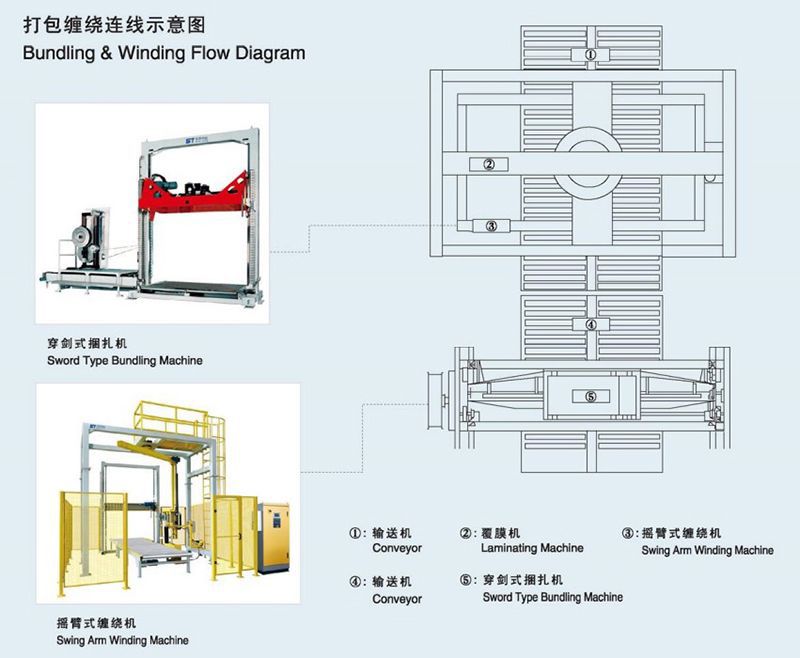

Stacks of corrugated cardboards get reliably bundled and secured for transport here. Two modules: automatic pallet strapper and automatic wrapper are deployed in order, connected with conveyor, to perform a full-auto and consistent stacking - feeding - bundling - film wrapping process.
Advantages
- We can offer the most suitable configuration according your certain situations;
- According to your production line set-up, we can offer you the optimal arrangements of automatic warping and strapping system deployment.
-
-

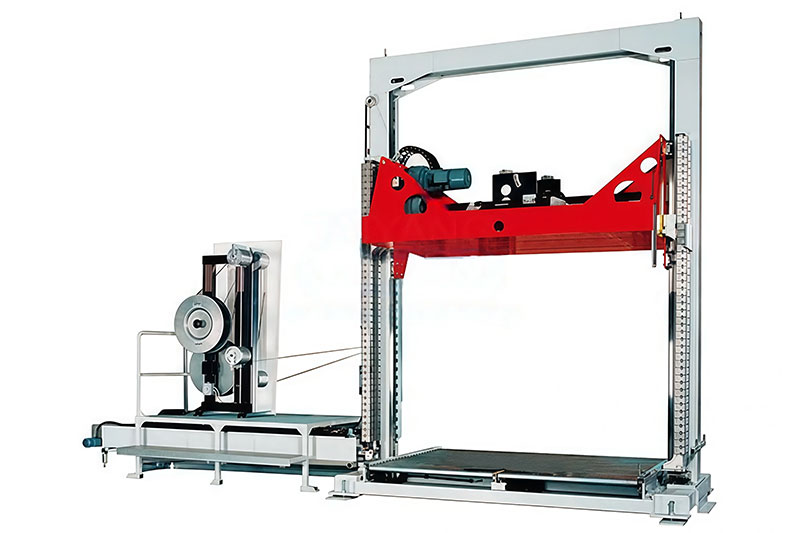

- Automatic Pallet Strapping Machine
To automatically strap stack or cargo on its pallet transversely and longitudinally with the control of high-performance PLC. The strapping is performed with PET strap, and the process is suitable for strapping both stacks of loads or cargo loaded in container.
View More
Power supply: 380V/50HZ 2000W/5A
Strapping type: 1 ~ multi parallel straps, automatic/manual
-
-
-

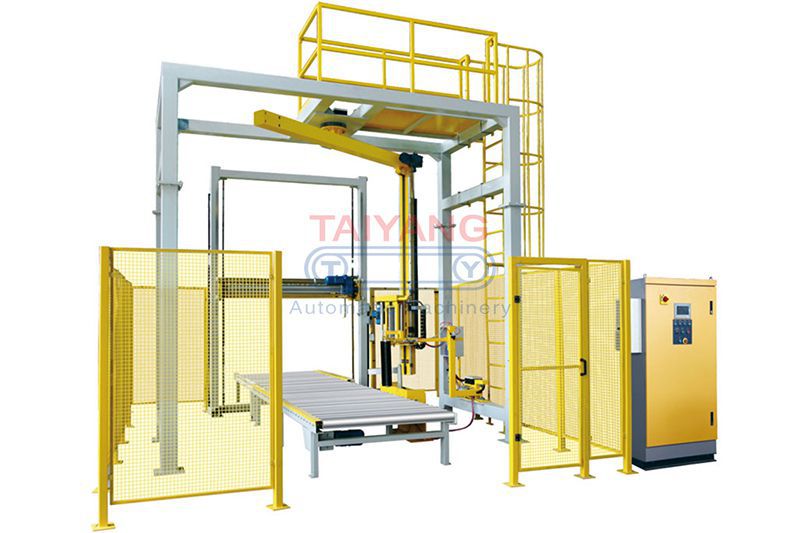

- Automatic Rotary Arm Style Stretch Wrapper
Suitable for wrapping very heavy or light loads that may create instability. Automated control involves the full wrapping processes including load detection, packaging, centering, wrapping, conveying, etc.
View More
Power supply: 2.2kw/380V
Pallet size (L*W): L1200*W1200 mm (customizable)
-
-
-

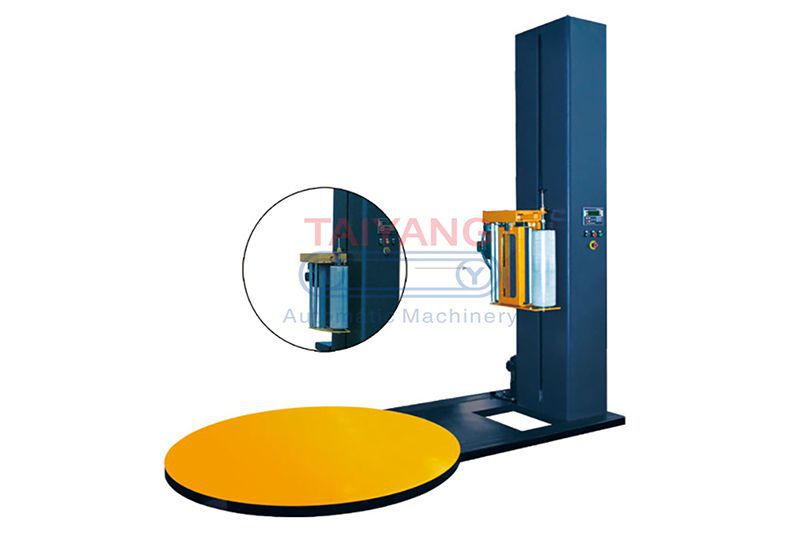

- Turntable Stretch Wrapper
Power supply: 1.55kw
View More
Pallet size(L*W): 1200*1200 mm (customizable)
Maximum load height: 2200 mm (customizable)
Wrapping material: LLDPE stretch wrap film, width: 500mm, thickness: 17~30um
Production speed: 20-40 loads/hour
-
-
-

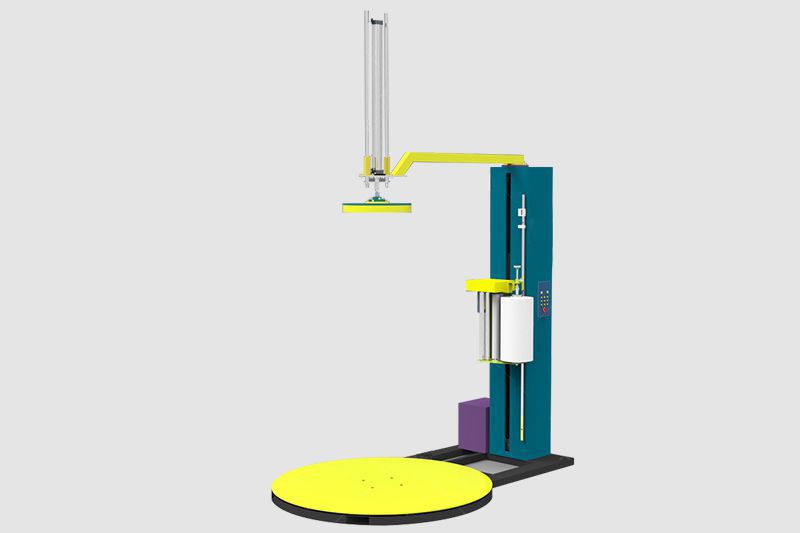

- Stretch Wrapping Machine with Top Press
To perform stretch wrapping on light and loose loads. Top press is available during wrapping, in case the load is slanted. The top press is powered by pneumatic drive or electric motor drive.
View More
-
We offer advanced and cost-effective intralogistics equipment as well as professional intralogistics solutions for corrugated board industry. Tell us your strategic objectives and requirements, and we can offer you planning and technical support services:
- If you are about to construct a new plant, we can help with designing the facility, and offer process planning and intralogistics system planning;
- If you have already constructed a plant, but is not ready to run yet, we can offer process planning and intralogistics system planning services;
- If you are currently running the factory, and you want to optimize your production, we can offer consultations and examinations on rationality of your process planning, and design an optimal process re-planning if needed.
Except some special occasions, most of our products are non-standard and customizable. Units and modules to consist our intralogistics system with the same or similar functions may be in different specifications, but their basic structures and mechanisms are the same.
To customize intralogistics system or devices, we’ll discuss first to make sure of the intralogistics planning, with which the specifications and configurations of all units are determined, and the devices we offer are customized according to the specification determined in the plan. Note that control system is customized according to the requirements of the plan as well.
Since many components of our products are non-standard, per-determining the lead time is difficult. Order quantity and device complexity can both influence the delivery date.
Deposit takes 40% of the total price, and 60% should be paid before delivery; payment can be finished via TT, LC, etc.
Taiyang has abundant well-experienced aftersales personnel and spare part storage in China, so that we can respond to requests very quickly.
- Response to issues: 7×24 response; online guidance and problem-shooting will be offered within 24 hours after malfunctions occur;
- 1-year free warranty;
- Lifetime paid service: we offer paid services and spare parts for the most favorable prices to make sure our devices operate reliably and safely within their lifespans.
