Automatic Pallet Wrapper & StrapperIn paper mills and corrugated board plants, paper rolls and reels are typically handled without any protective packaging. There may be a variety of safety concerns when moving paper rolls within your plant, the necessity for paper roll handling including feeding and turning securely is one of the key concerns to protect paper materials from being damaged.
Taiyang offers a selection of paper reel handling equipment and identifies roll handling solutions that are engineered to address a number of paper roll handling problems while solving the needs of paper and corrugated board manufacturers for automatic handling of paper rolls and reels, particularly in their automatic paper manufacturing plants.
Below you will find our paper reel handling systems primarily designed for paper and cardboard manufacturing plants. If you do not see your paper roll handling equipment below, please

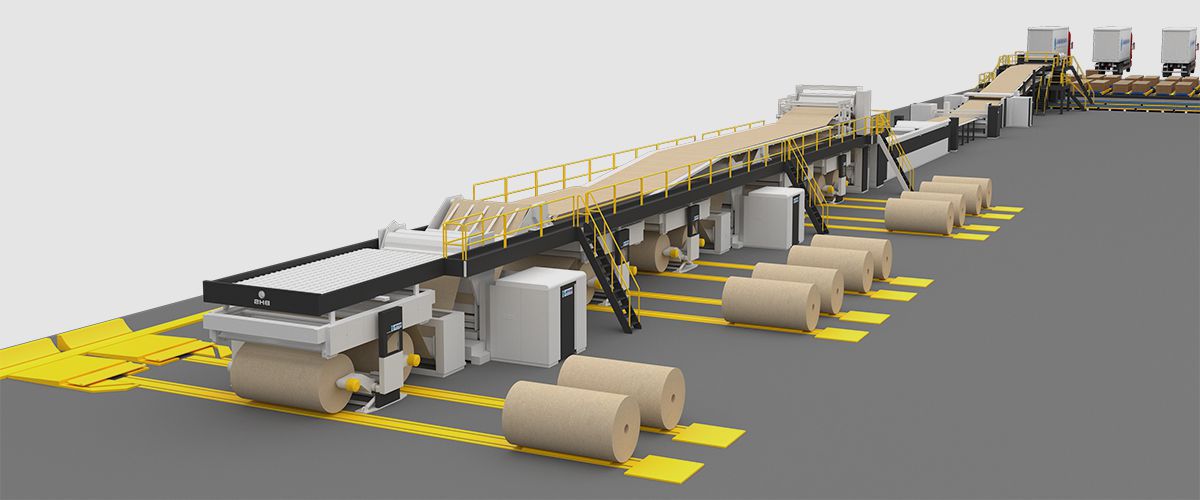

Paper Reel Handling System
Automation of in-plant paper reel handling in Taiyang’s corrugated board intralogistics solution is realized by employing paper roll in-feed system, turntable/paper roll turning device, and reel return line. Extra efficiency can be obtained for your processes with Taiyang as your intralogistics partner.
-
-

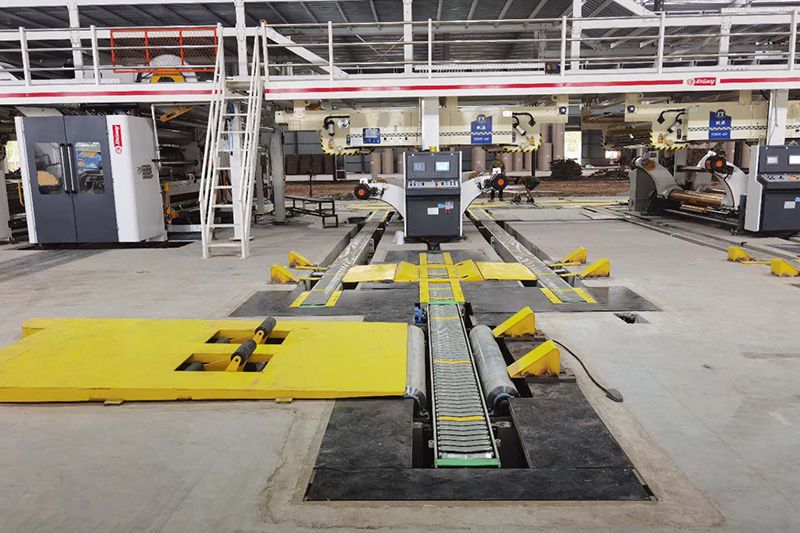

- Paper Roll in-feed System
Temporary storage and uninterrupted in-feed
Reel preparation for the corrugator, paper reels are fed for unwinding at the right moments as preset, fully automatically in a highly efficient manner.
-
-
-

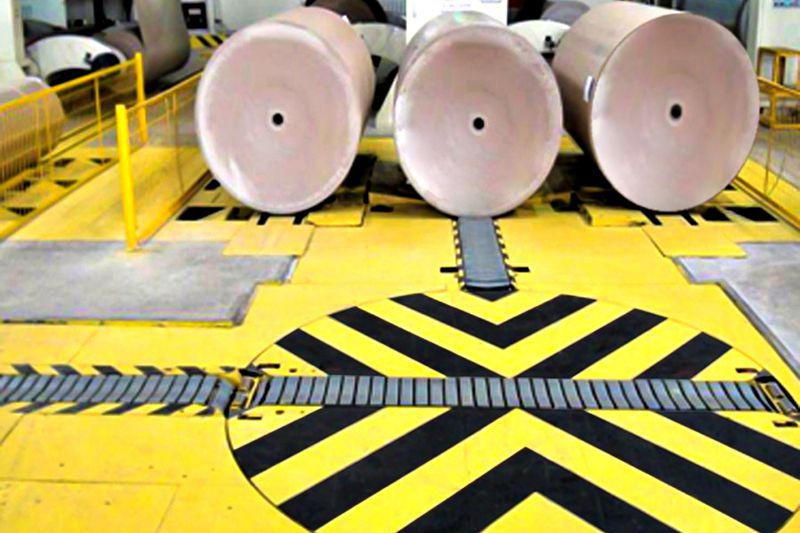

- Turntable/Paper Roll Turning Device
Useful when reel’s transport direction requires a change
Turntable is designed for reel conveying processes where the transport direction has to be changed by 90°. Transmissions of the turning mechanism are proceeded with large and durable gears, stability and sturdiness of the turntable is thus granted.
-
-
-

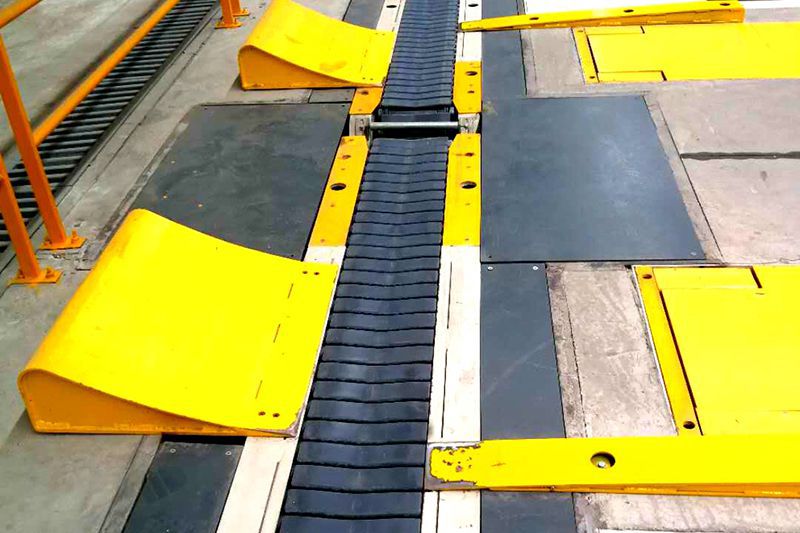

- Reel Return Line
Where rest reels get weighed and transferred
Handling the management of all rest reels, which get weighed and tagged during the process by an automated weighing unit. Real-time feedback information is available for WMS, to obtain a high efficiency for production and storage.
-
To serve our customers' specific needs, our team of engineers will work closely with our customers to identify the best solution by configuring different pieces of paper roll handling equipment to move paper rolls inside their paper and cardboard plants.

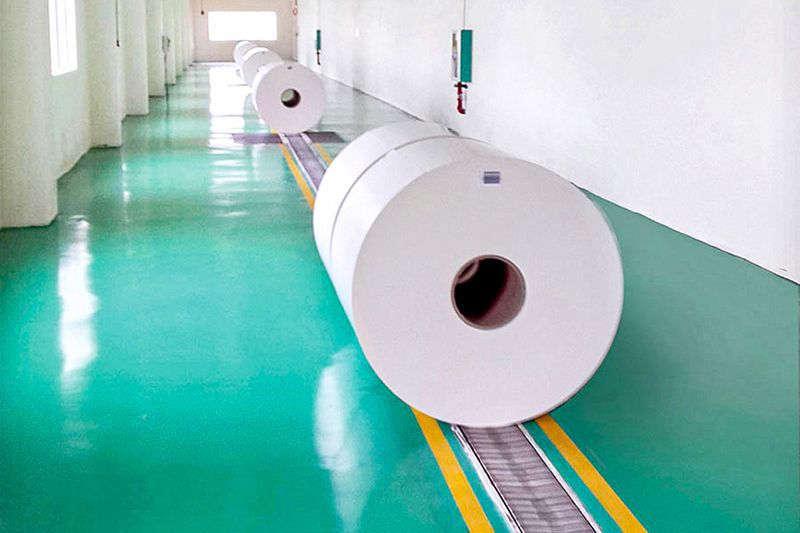

1. Chain bar: Chain bar pitch: 63.5mm
2. Slat: V type, size 250*55*8 mm, made of 15Mn steel
3. Motor: Shaft speed reducer drive with helical gear
4. Capacity: 200kg/m (space between paper rolls: 500mm)
5. Speed: 60 rolls/hour

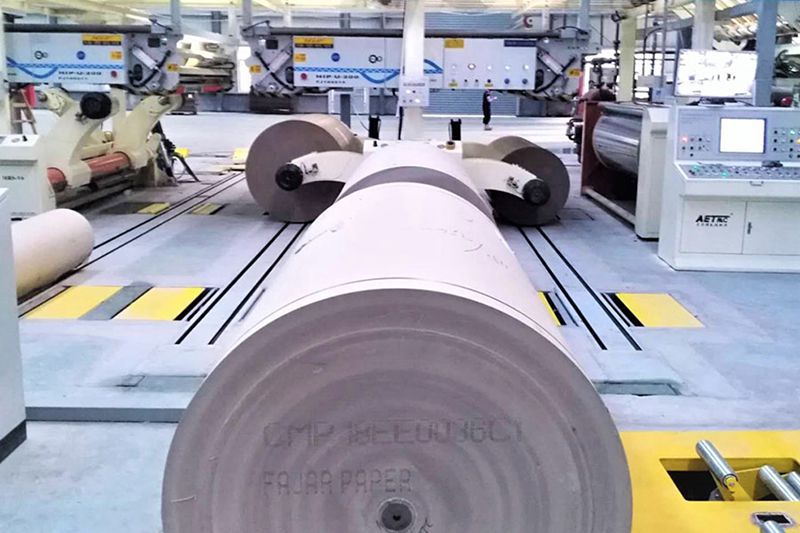

1. Feed paper roll to different reel stand.
2. Mode: Pneumatic
3. Function for storing paper roll: optional

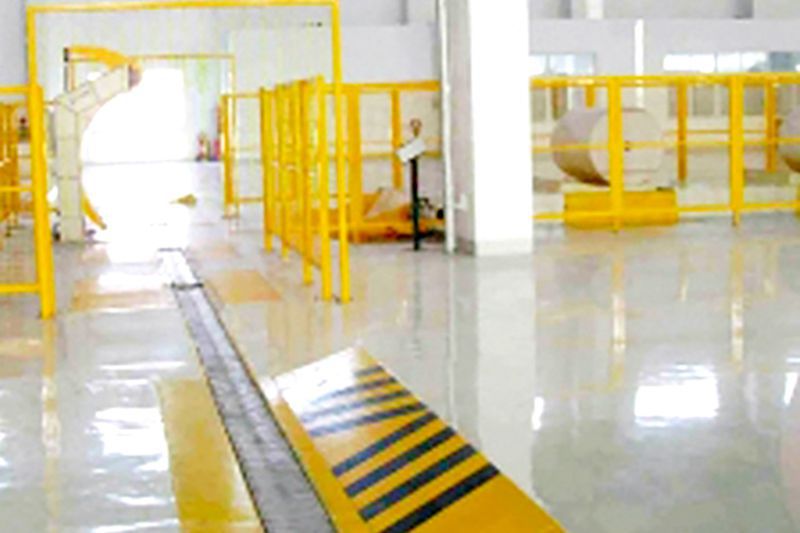

1. Stop moving paper roll slowly
2.Control mode: Automatic

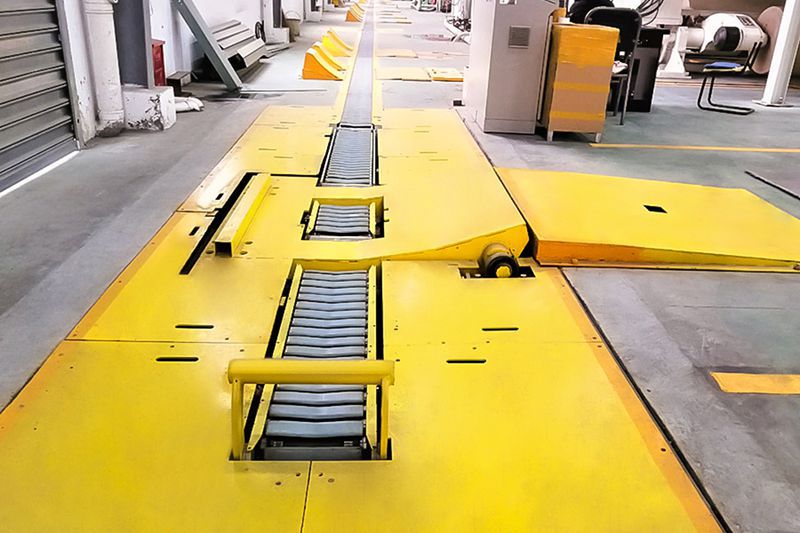

1. Push the paper roll carefully onto the next conveyor.
2. Control mode: Automatic
We offer advanced and cost-effective intralogistics equipment as well as professional intralogistics solutions for corrugated board industry. Tell us your strategic objectives and requirements, and we can offer you planning and technical support services:
- If you are about to construct a new plant, we can help with designing the facility, and offer process planning and intralogistics system planning;
- If you have already constructed a plant, but is not ready to run yet, we can offer process planning and intralogistics system planning services;
- If you are currently running the factory, and you want to optimize your production, we can offer consultations and examinations on rationality of your process planning, and design an optimal process re-planning if needed.
Except some special occasions, most of our products are non-standard and customizable. Units and modules to consist our intralogistics system with the same or similar functions may be in different specifications, but their basic structures and mechanisms are the same.
To customize intralogistics system or devices, we’ll discuss first to make sure of the intralogistics planning, with which the specifications and configurations of all units are determined, and the devices we offer are customized according to the specification determined in the plan. Note that control system is customized according to the requirements of the plan as well.
Since many components of our products are non-standard, per-determining the lead time is difficult. Order quantity and device complexity can both influence the delivery date.
Deposit takes 40% of the total price, and 60% should be paid before delivery; payment can be finished via TT, LC, etc.
Taiyang has abundant well-experienced aftersales personnel and spare part storage in China, so that we can respond to requests very quickly.
- Response to issues: 7×24 response; online guidance and problem-shooting will be offered within 24 hours after malfunctions occur;
- 1-year free warranty;
- Lifetime paid service: we offer paid services and spare parts for the most favorable prices to make sure our devices operate reliably and safely within their lifespans.
