Corrugated Cardboard Conveying System

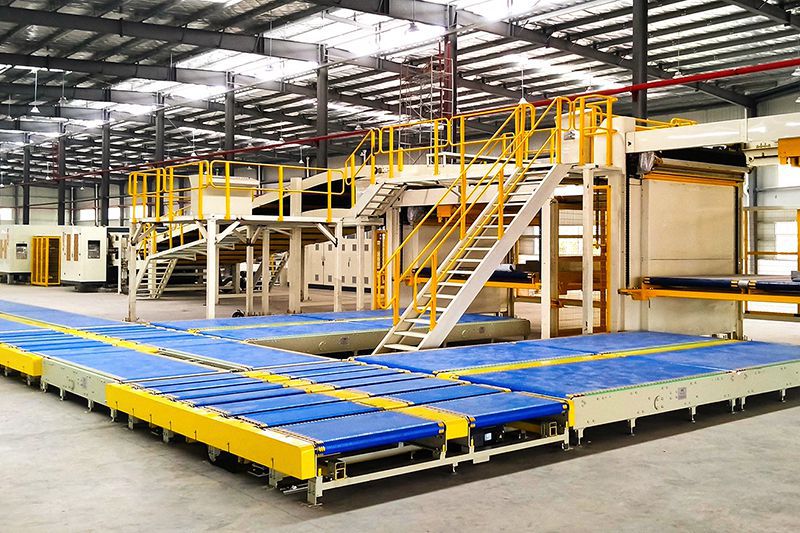

- Corrugated cardboard conveying system employs conveyors and RGVs (Rail Guided Vehicle) to handle transportations of corrugated cardboards between processes of production and storage in a high effiency manner.
- Configurations of control system is customizable to fit certain situations, and realize the optimal automated intralogistics efficiency.
-
-
- Transfer Cart
Traffic-jam-free work-in-progress storage with great efficiency

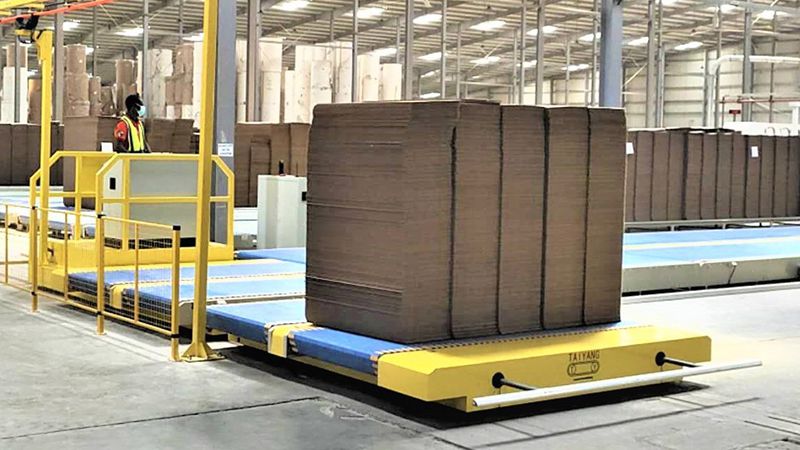

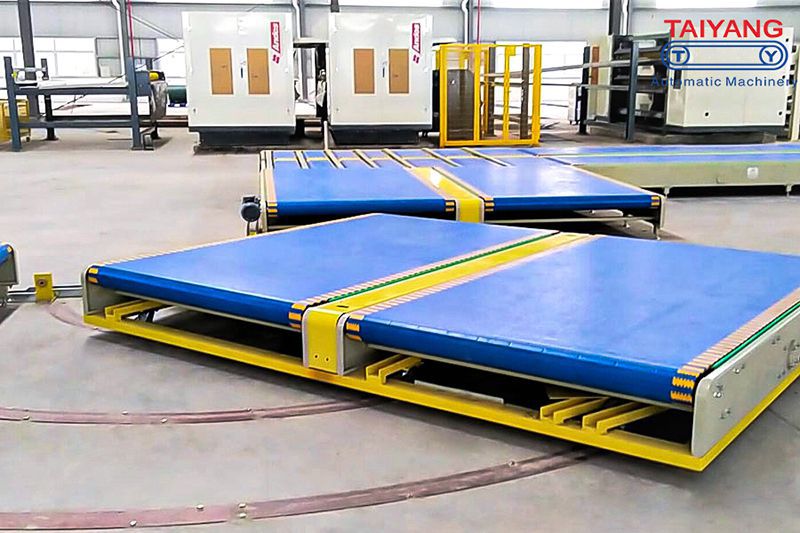

High-performance transfer cart offers excessive extra efficiency for your work-in-progress storage. With maximum speed up to 120m/min and laser rangefinders equipped, the cart can transport the stacks precisely to where they are needed. Safety is another point to emphasis here – the cart equips two laser scanners each on the front sides, with which a controller is designed so that manual operation is supported as well.
-
-
-
- Buffer Conveyor
Stack transportation is stable and uninterrupted
Stack transportation is proceeded with our tested conveyor. The conveyor equips modular plastic chains made of acetal to achieve high stability and efficiency.
Advantages: Low-maintenance, convenient service; Frequency-controlled drive; Space usage optimized by double occupancy of storage lanes; No sheet-walk effect; Waste caused by damage is reduced; Safe operation.
-
-
-
- Custom Conveyor
Whatever in the way, our designers can handle
Many issues must be considered when designing a conveying path, some devices may have strict demands on local conditions, and obstacles like pillars might exist in the path. But don’t worry, our expert and experienced team can offer you the very optimal design. Whether turning devices, right angle conveyors are needed or not, we can plan the right elements and arrange the optimal path for you.
-
Depending on the individual requirements of our customers, our engineers will provide the optimum corrugated board conveying solution by combining various transfer carts and conveyors, to make sure that the transportation of corrugated board stacks is performing at its peak efficiency at their corrugated board plants.
- Chassis: the frame structure is mainly welded with 12#/ and 10# steel channels; Polyurethane coated rubber wheel;
- Total power: 6.25 ~ 11.5kW, customization upon request;
- Conveyor type: plastic modular chain/roller;
- Optional conveyor specification: 2500L*2500W/2600L*2500W/2900L*2500W (customization upon request)
- Safety: mechanic anti-collision system included, optional radar detection;
- Power supply mode: overhead or underground power line;
- Automation: full automatic or manual driving;
- Speed: 120m / min.

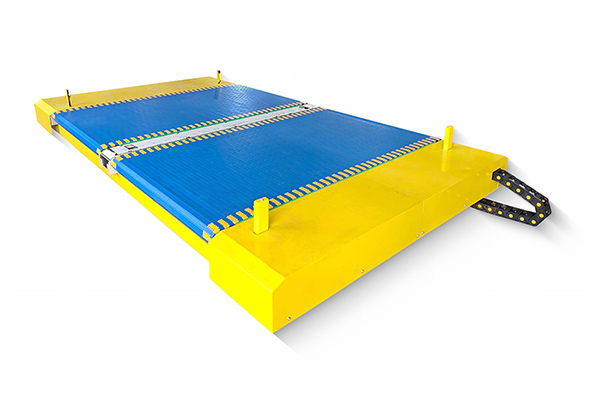

As a professional manufacturer of corrugated board plant auxiliary equipment, Taiyang offers high performance transfer carts with conveyor belt or conveyor roller top. These material handling carts are engineered in response to the specific needs of in-plant corrugated cardboard transport between cardboard lines, printing machines and carton box making machines. This kind of industrial delivery cart can ideally solve cardboard box manufacturers' challenges for fast cardboard feeding and unloading, therefore effectively improving productivity with quick changes after an order has been completed.
View More
- Total power: 0.75~2.2kW (customized)
- Conveyor type: Plastic modular chain/belt/roller
- Speed: 18-60m/min
- Optional conveyor specification: 1600L*1500W/2500L*2500W/3600L*2500W (customization upon request)

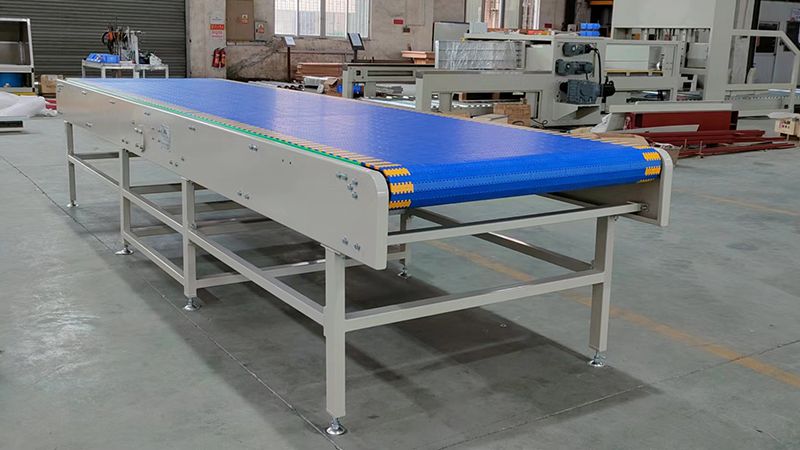

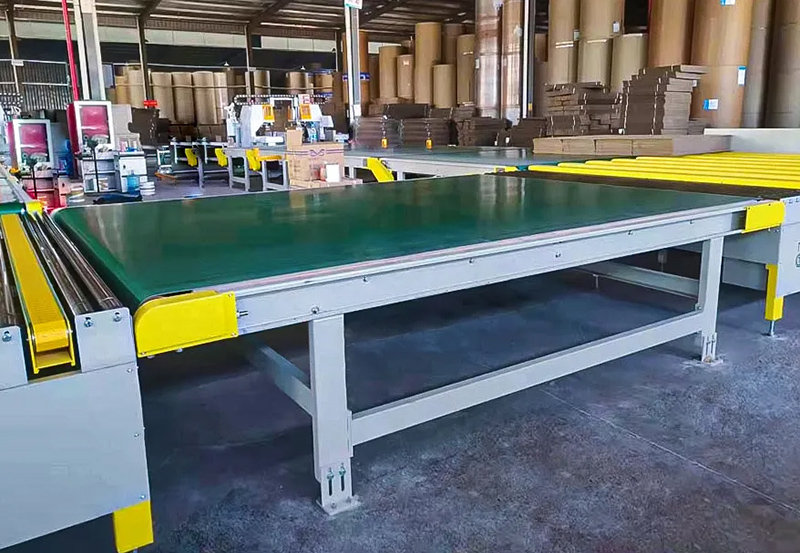

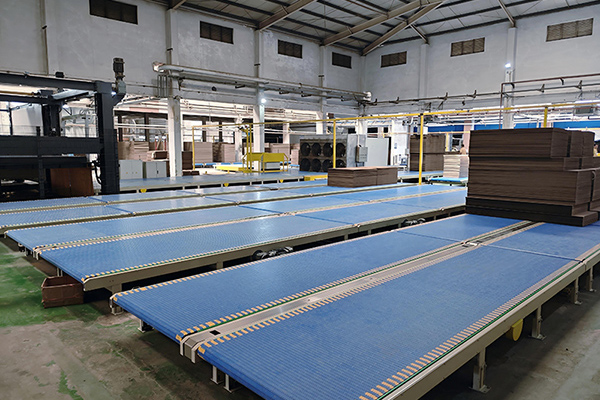

Our light duty modular belt conveyors are conveyor system modules with modular chain belts, with the capability for long-distance transportation of cardboards and enabling multiple processes to be carried out during the conveying. This light duty modular belt conveyor allows cardboards to be transported through horizontal, vertical and inclined paths. It can overcome the shortcomings of belt tears, wear cuts, holes and corrosion that are often occur in conventional belt conveyors.
View More

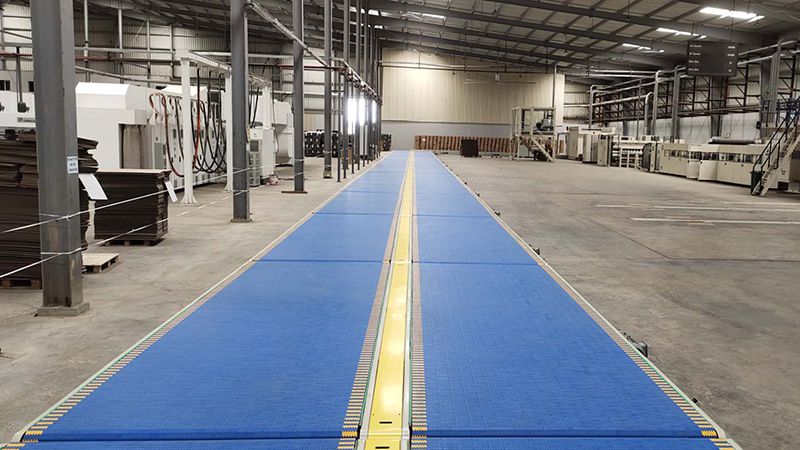

We know that production safety and product quality are the two most important criteria that matters to corrugated cardboard manufacturers. To fulfill market needs of high productivity and reduce cardboard damage that frequently occurs in conventional conveying systems, we offer heavy duty modular belt conveyor to conduct cardboard transporting operations from corrugated board line through to final carton box warehousing. It is a safe and reliable solution alternative to traditional conveying methods by means of corrugated cardboard pallets.
View More
Lifting and Lowering Plastic Modular Chain Conveyor

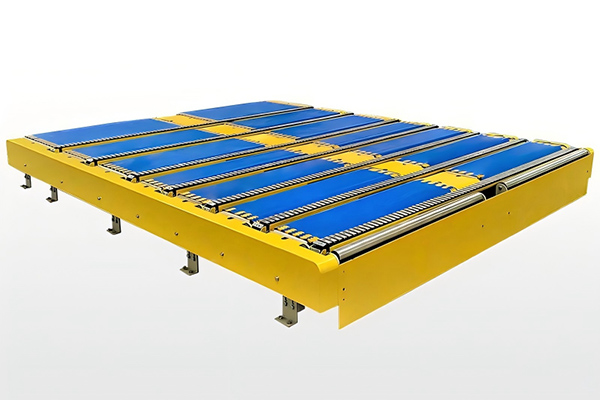

Lifting and Lowering Roller ConveyorThis is a conveyor system integrated with straight conveyor (X-axis conveyor) and roller conveyor with lift (Y-axis conveyor). Therefore, it's also can be named XY conveyor. It's easy to construct automation line by allowing direction change to the conveyor.
- Straight conveyor: optional with plastic modular belting or roller
- Total power: 2.25 kW (or customized)
- Conveyor with lift: optional with plastic modular belting or chain
- Lift: air bag
- Optional conveyor specifications: 2500L*2500W/3600L*2500W (or customized)
- Chassis: the frame structure is mainly welded with 10#/ and 8# steel channels; Polyurethane coated rubber wheel;
- Conveyor type: Plastic modular belting/roller;
- High safety: safety fence,1500mm high
- Rotation angle: 0°-90 ° / 180°
- Speed: 32m/min
- Optional conveyor specification: 2500-3000L*2500-3600W (or customized)
Point to point transportation between conveyors, to maintain intralogistics performance and efficiency while reducing the quantity of conveyors or reserved paths for conveying.
- Chassis: the frame structure is mainly welded with 12#/ and 10# steel channels; Polyurethane coated rubber wheel;
- Total power: 2.75kW, customization upon request;
- Conveyor type: plastic modular chain/roller;
- Safety: optional radar detection;
- Power supply mode: overhead or underground power line;
- Automation: full automatic;
- Optional conveyor specification: 2500-3000L*1500~2500W (customization upon request)
90° Turning Transfer Cart with Roller Conveyor
- Chassis: the frame structure is mainly welded with 12#/ and 10# steel channels; Polyurethane coated rubber wheel;
- Conveyor type: plastic modular chain/roller
- Rotation angle: 0°~360°
- Speed: ≤ 32m/min
- Turntable specification: ⌀ 2500/3300 (or customized)
- Total power: 2.05kW or customized
- Conveyor speed: 35m/min
- Conveyor type: steel ball/roller type
- Rotation type: optional ball plastic modular belting or lift & rotate system
- Rotational speed: 90° in 2s
- Optional conveyor specification: 2000L*1600W/2500L*2500W (customization upon request)
- Total power: 0.75~2.2kW
- Conveyor type: plastic modular chain/roller
- Rotation angle: 0°-90°
- Conveyor specification: 1200mm Width, R1200/R2450 mm

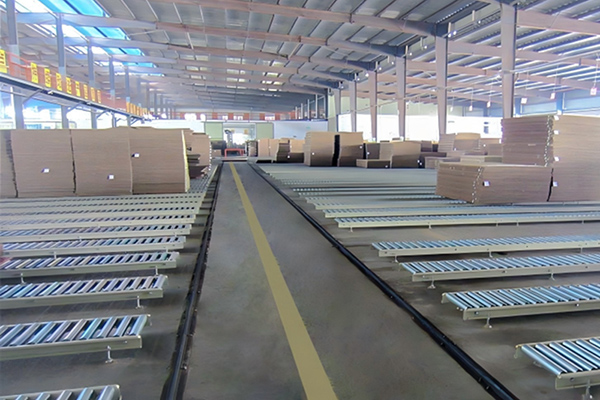

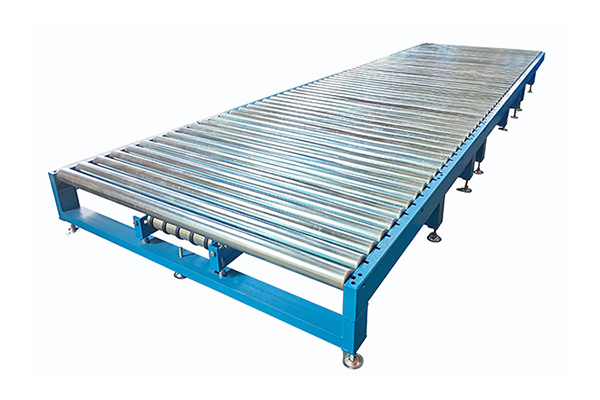

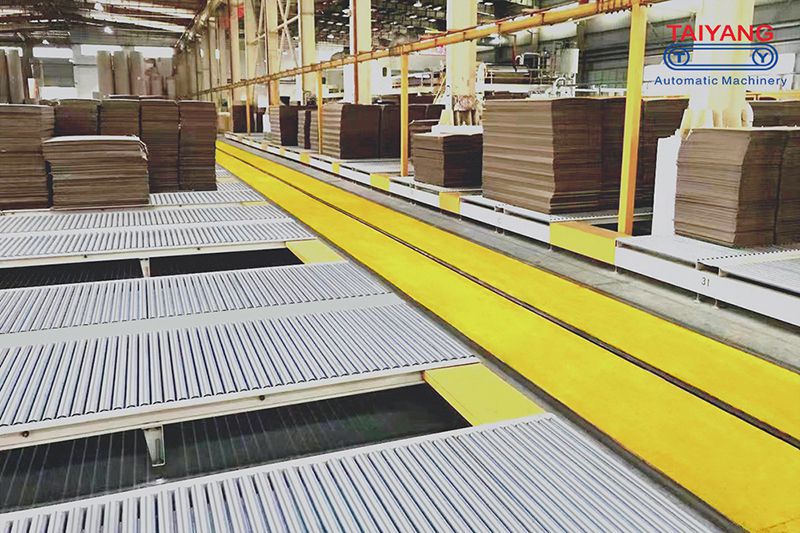

Gravity roller conveyor is a very cost-effective and versatile conveying system with extensive applications. Known for its ability for simplifying operations and enhancing productivity, this gravity conveyor is featured by high flexibility for moving corrugated cardboards throughout the conveying system, allowing more goods to be transported simultaneously over great distances in the workplace while significantly reducing manual handling tasks. Our gravity roller conveyor can be made according to customers' specific needs for transporting corrugated cardboards of different lengths, widths and stack heights.
View More
- Chassis: mainly welded with 10# steel angles and 8# steel channels, with steel wheels
- Roller diameter: 45mm/50mm/60mm/76mm or customized
- Optional conveyor specification: 2500L*1600W/2500L*2500W (customization upon request)
- Conveyor frame: made using 50*59 square steel tube and 3mm steel plate
- Roller diameter: 50mm
- Conveyor specification: 1000L*1000W (customization upon request)
- The board dispenser is connected with conveyor on the stacking station of the corrugated cardboard production line, which is used for automatically placing base board before conveying cardboard stack. This avoids damage to the bottom of the stack, and provides protection of bottom edge, thus less waste generated.
- Rollers support the board, allowing for smooth board conveying.
- Adopting chain conveyor and block reduces damage to the board when it's pushed.
- Height limit ensures the board is delivered one by one.
- The automatic control system between corrugator line and board dispenser is fully integrated, making the board dispenser works synchronously with the stacking section.

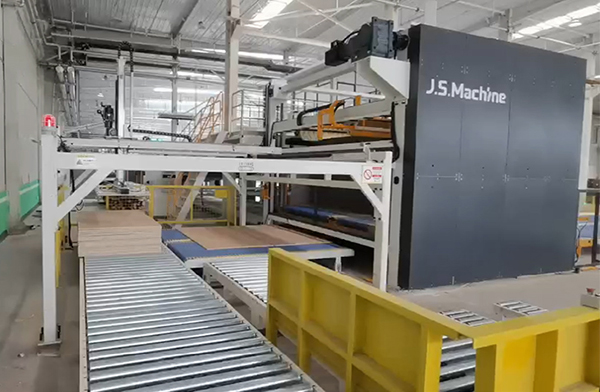

In order to meet today's market demands of reducing material wastes, Taiyang's R&D department has developed a cardboard handling vacuum gripper system which is a manipulator system using suction pads, enabling the cardboard to be securely gripped without damaging the bottom of the cardboard. Therefore, the problem of cardboard damage during the lifting and transporting can be effectively solved.
View More

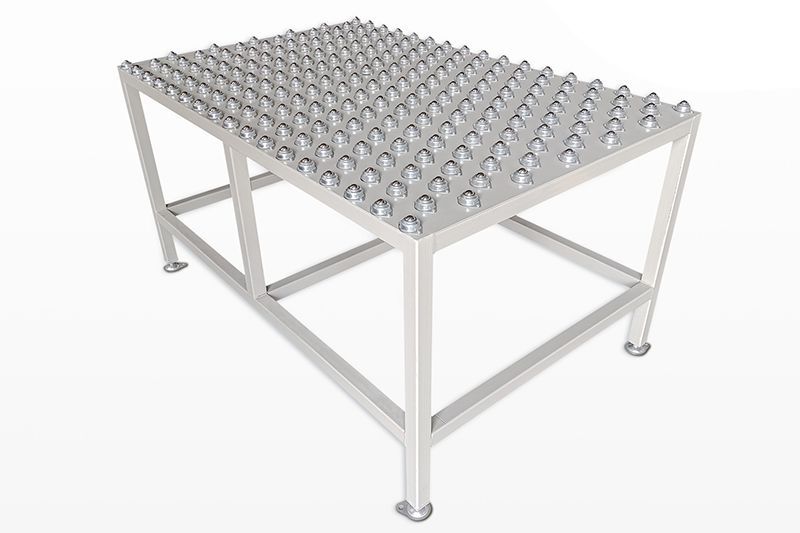

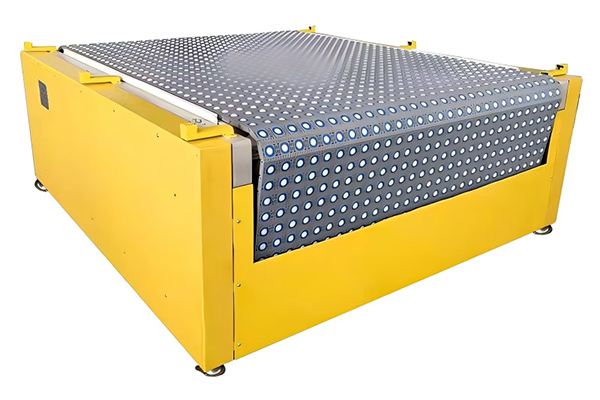

- The ball transfer table is used where product needs to be rotated or moved in more than one direction.
- Steel ball: 1-1.5 inch
- Specification: customized

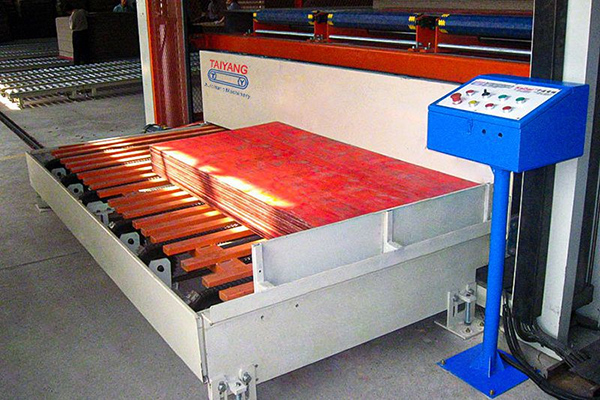

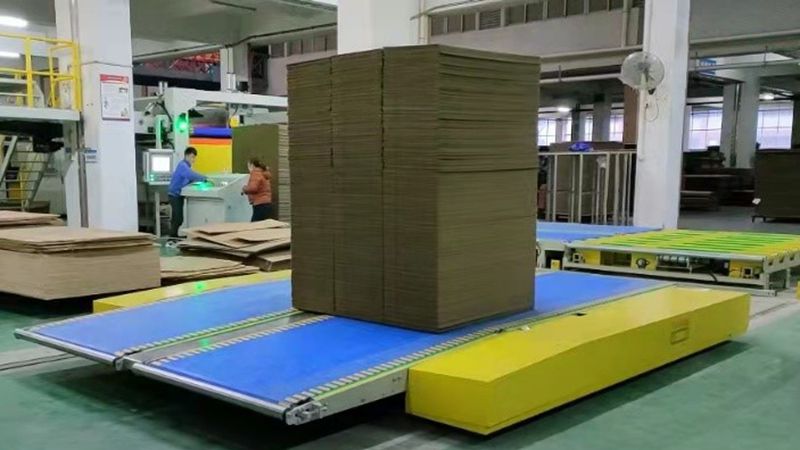

Automatic pallet inserter system is intended to automatically load corrugated cardboard stacks on pallets made of wood, plastic or metal. It is an ideal solution for the automatic loading of cardboards from cardboard line to pallets.
Our automatic pallet inserter system is composed of a pallet inserter conveyor and a set of pneumatic stop gate.
We offer advanced and cost-effective intralogistics equipment as well as professional intralogistics solutions for corrugated board industry. Tell us your strategic objectives and requirements, and we can offer you planning and technical support services:
- If you are about to construct a new plant, we can help with designing the facility, and offer process planning and intralogistics system planning;
- If you have already constructed a plant, but is not ready to run yet, we can offer process planning and intralogistics system planning services;
- If you are currently running the factory, and you want to optimize your production, we can offer consultations and examinations on rationality of your process planning, and design an optimal process re-planning if needed.
Except some special occasions, most of our products are non-standard and customizable. Units and modules to consist our intralogistics system with the same or similar functions may be in different specifications, but their basic structures and mechanisms are the same.
To customize intralogistics system or devices, we’ll discuss first to make sure of the intralogistics planning, with which the specifications and configurations of all units are determined, and the devices we offer are customized according to the specification determined in the plan. Note that control system is customized according to the requirements of the plan as well.
Since many components of our products are non-standard, per-determining the lead time is difficult. Order quantity and device complexity can both influence the delivery date.
Deposit takes 40% of the total price, and 60% should be paid before delivery; payment can be finished via TT, LC, etc.
Taiyang has abundant well-experienced aftersales personnel and spare part storage in China, so that we can respond to requests very quickly.
- Response to issues: 7×24 response; online guidance and problem-shooting will be offered within 24 hours after malfunctions occur;
- 1-year free warranty;
- Lifetime paid service: we offer paid services and spare parts for the most favorable prices to make sure our devices operate reliably and safely within their lifespans.
