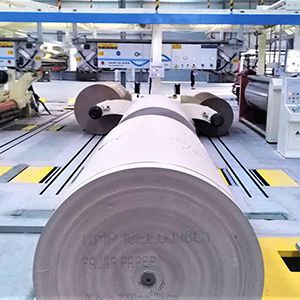

Paper Reel Handling System
Corrugated Cardboard Conveying System

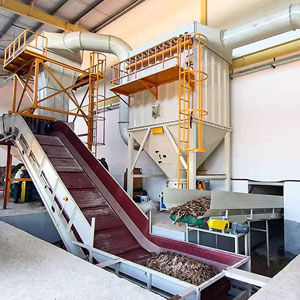

Waste Handling System
Load Former

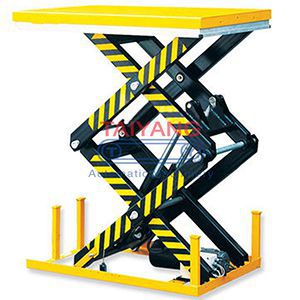

Lifting Platform

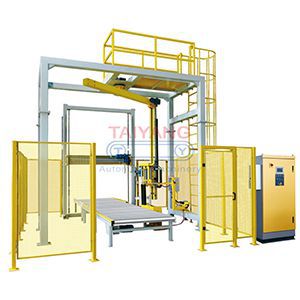

Automatic Pallet Wrapper & StrapperWith the focus on increasing the productivity for paper machines and corrugated cardboard production lines, Taiyang has designed and manufactured a variety of load former systems for pallet handling needed in the paper and corrugated industry. Our pallet handling systems are specially designed to improve the pallet loads of corrugated material stacking while ensuring the high efficiency and flexibility of pallet distribution.
At Taiyang, we have a team of specialists to help corrugated board plants with appropriate palletizing solutions to integrate their corrugated board and carton packaging systems.
If you have any questions about our palletizers and load former systems, please

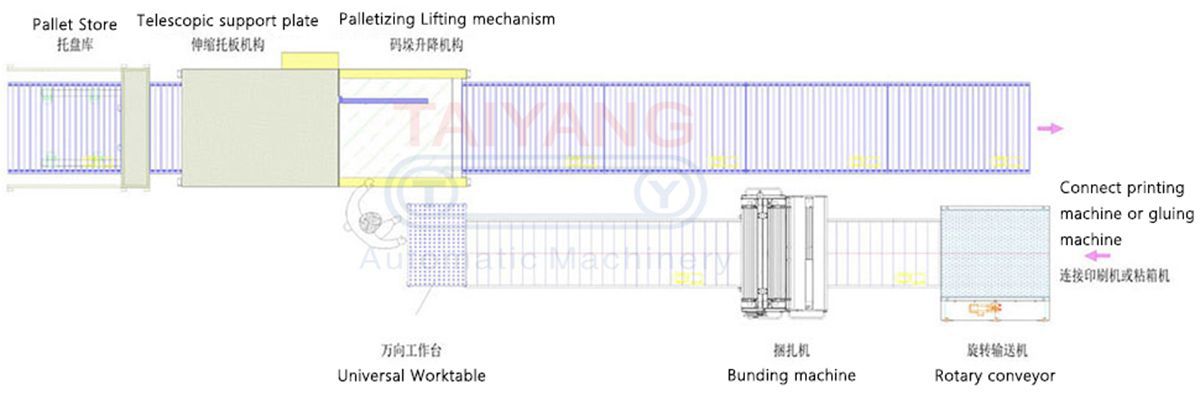

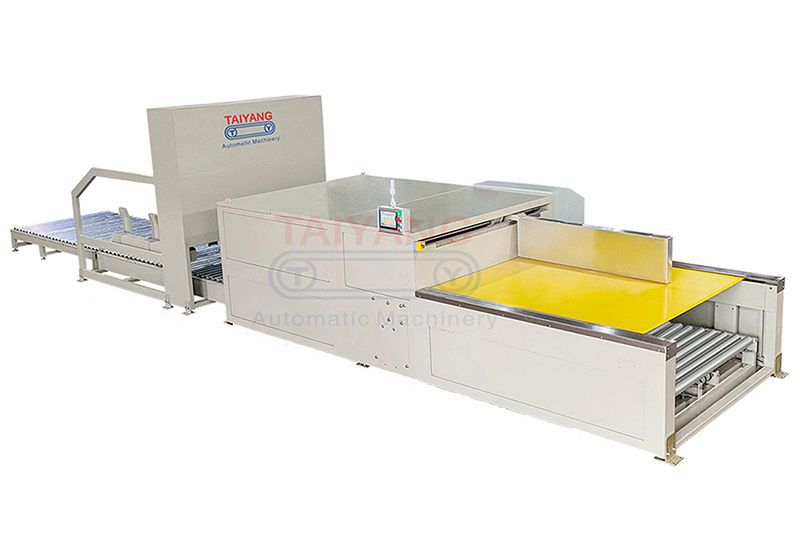

The load former system consists of palletizer, pallet dispenser and conveyor, and its operation features low cost. Load formers can be attached to printing press, die cutter, folder gluer, etc., to receive their outputs and to form stacks.
Advantages
- Low cost;
- Highly automatic, easy to operate;
- Reliable and durable;
- Easy for maintenance.
Components of the Load Former System
- Palletizer: the palletizer mainly consists of conveyor lift, stripper plate and powered backstop;
- Pallet dispenser: to automatically store and release pallets;
- Roller conveyor: to convey pallets and stacks. Pallet centering device is equipped for the roller conveyor;
- Control system: with programmable PLC, pallet specifications, stack width, height and in-feed thickness can be adjusted conveniently by entering parameters.
-
-

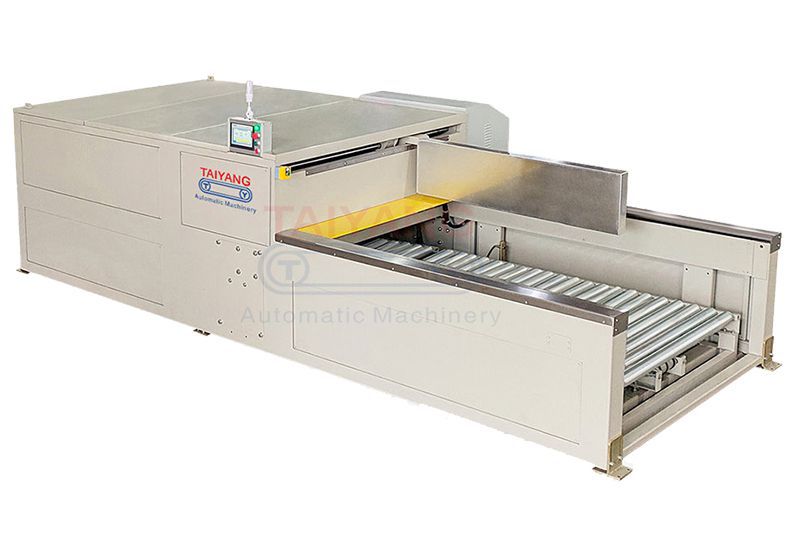

- Load Former Palletizer
Electric-motor-drive, large lifting height;
Electric-motor-drive version can perform a faster work.- Spec.: 5000L*2650W*1520H (mm)
- Weight: 3500kg
- Total power: 35kW
- Stacked pallet spec.: 1900L*1300W*2350H (max.) (mm) 1000L*900W*2350H (min.) (mm)
- Max. pallet capacity: 900kg
- Stack speed: 7.8s/run
- Loaded pallet release speed: 18.5s/run
Request a Quote
-
-
-

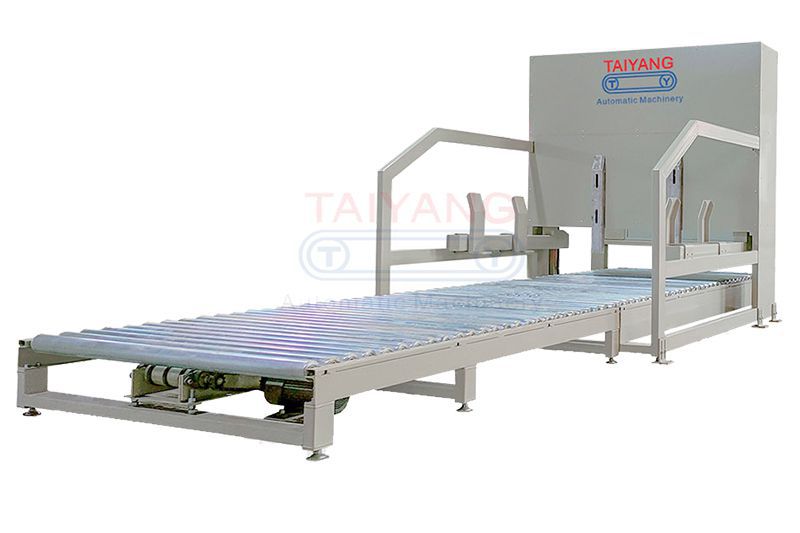

- Pallet dispenser
The pallet dispenser is applied for automatically storing and releasing pallets at the right moments.
Modules: powered roller conveyor and pallet centering device.- Spec.: 3000L*2100W*2250H (mm)
- Weight: 1570kg
- Total power: 2.95kW
- Stacked pallet spec.: 1900L*1300W*160H (max.) (mm) 1000L*900W*120H (min.) (mm)
- Air pressure: 8Pa
Request a Quote
-
We offer advanced and cost-effective intralogistics equipment as well as professional intralogistics solutions for corrugated board industry. Tell us your strategic objectives and requirements, and we can offer you planning and technical support services:
- If you are about to construct a new plant, we can help with designing the facility, and offer process planning and intralogistics system planning;
- If you have already constructed a plant, but is not ready to run yet, we can offer process planning and intralogistics system planning services;
- If you are currently running the factory, and you want to optimize your production, we can offer consultations and examinations on rationality of your process planning, and design an optimal process re-planning if needed.
Except some special occasions, most of our products are non-standard and customizable. Units and modules to consist our intralogistics system with the same or similar functions may be in different specifications, but their basic structures and mechanisms are the same.
To customize intralogistics system or devices, we’ll discuss first to make sure of the intralogistics planning, with which the specifications and configurations of all units are determined, and the devices we offer are customized according to the specification determined in the plan. Note that control system is customized according to the requirements of the plan as well.
Since many components of our products are non-standard, per-determining the lead time is difficult. Order quantity and device complexity can both influence the delivery date.
Deposit takes 40% of the total price, and 60% should be paid before delivery; payment can be finished via TT, LC, etc.
Taiyang has abundant well-experienced aftersales personnel and spare part storage in China, so that we can respond to requests very quickly.
- Response to issues: 7×24 response; online guidance and problem-shooting will be offered within 24 hours after malfunctions occur;
- 1-year free warranty;
- Lifetime paid service: we offer paid services and spare parts for the most favorable prices to make sure our devices operate reliably and safely within their lifespans.
